Description

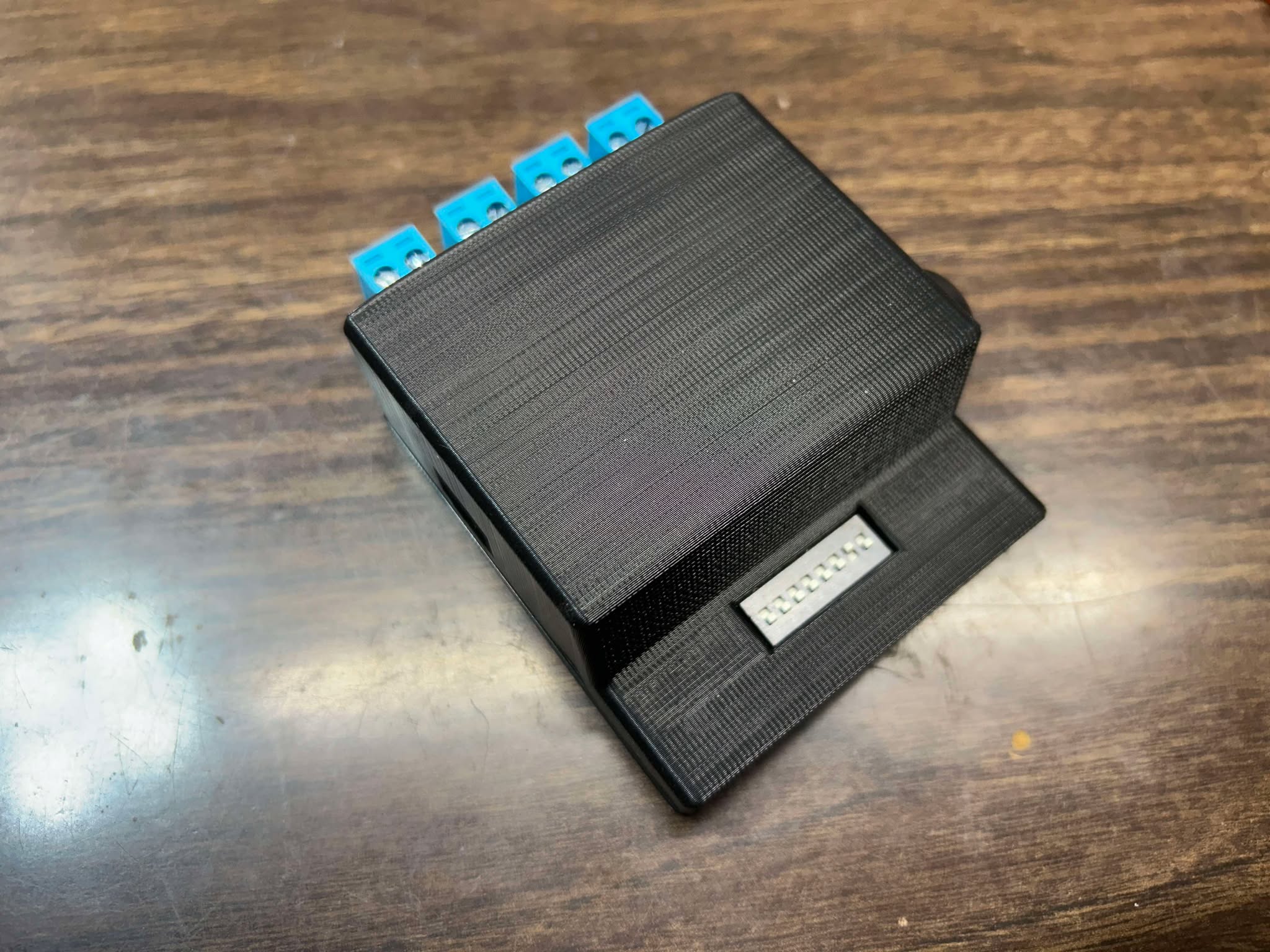

This is the Twisted Builds Canbus Logger. It is housed in a 3D printed case, has 8
switches (7 functional), a SD card, a micro USB port, and a LED latching push button on the

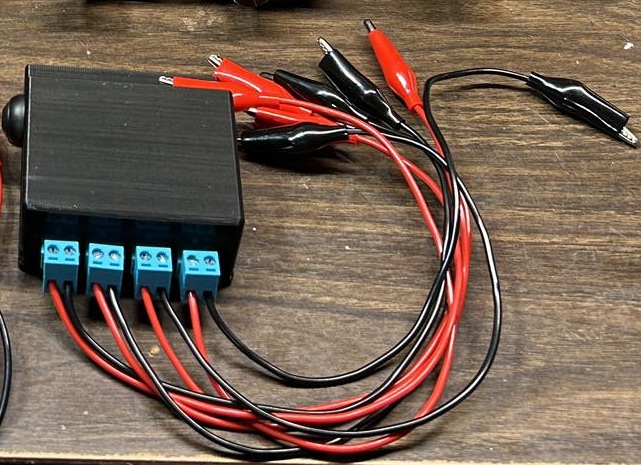

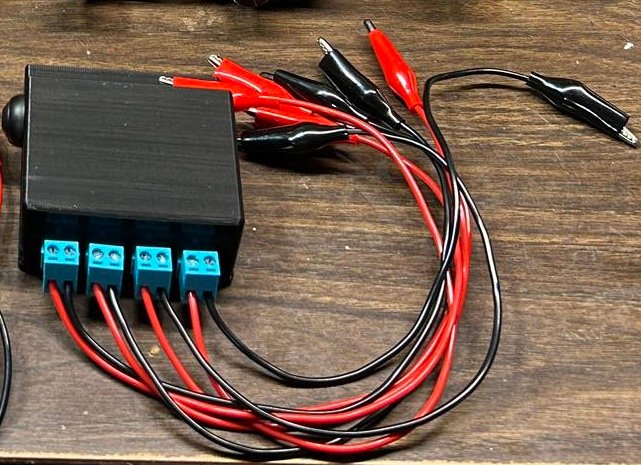

side, with 4 detachable connectors on the top. This device is initially setup with a laptop and
can be used tethered (connected to a laptop or computer) or can be used as a stand alone
logger once initial setup is performed with the computer. The canbus logger has 2x “regular”
canbus network inputs (CAN 2.0A or CAN 2.0B with standard or extended frame ID’s) and
1x CAN_FD network which can be found on modern automotive networks.
