Description

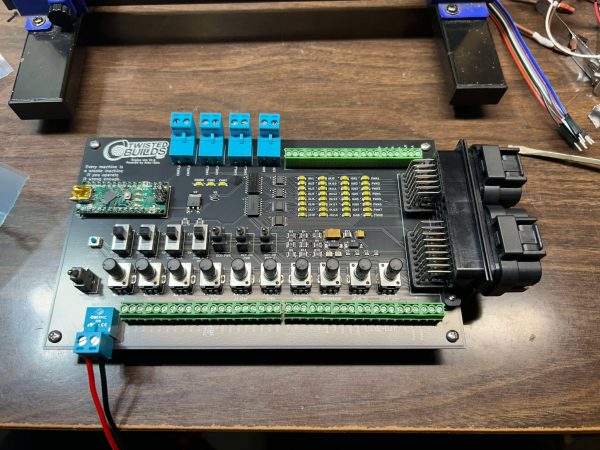

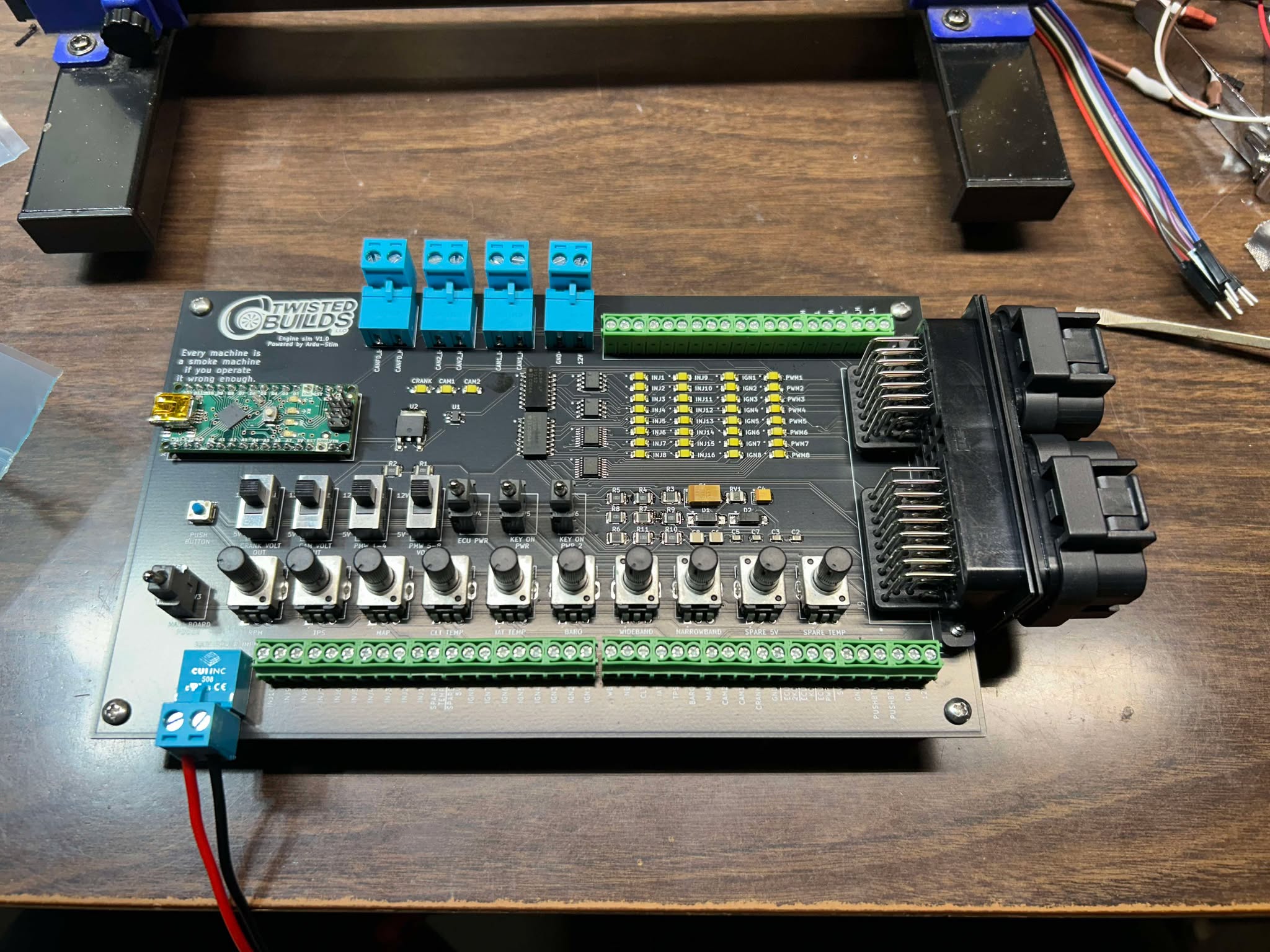

BUILT TO ORDER Engine Simulator from Twisted Builds LLC (MORE DETAILS AT BOTTOM). This is the most feature packed engine simulator (to my knowledge at the time of writing) on the market today.
16x injector simulated outputs.
8x ignition simulated outputs.
8x 12v or 5v simulated outputs.
61x simulated crank and camshaft(s) and wheel options (at time of writing) with selectable 5v or 12v signal outputs.
5x 0-5v simulated analog voltage outputs on adjustable knobs labeled as follows: TPS, MAP, BARO, WIDEBAND, SPARE 5V.
3x simulated temp sensor outputs on adjustable knobs labeled as follows: CLT TEMP, IAT TEMP, SPARE TEMP.
1x 0-1v simulated narrowband sensor output on a adjustable knob.
ECU power switch with 2x available key on power switches (for ignition or additional switched power).
60 pin main TE superseal connector (comes with one set of connectors and 60 terminals) for building quick plug and play bench harnesses. Engine Simulator also has terminal blocks for hard wiring connections as well.
Engine simulator comes with plug and play connection for Twisted Builds LLC Canbus Logger (coming soon!) and the USB cord to connect to your computer.
Priced at $425.00 USD which includes free shipping (in USA only). International orders please email sales@twistedbuilds.com to get shipping quote.
60 pin connector pinout diagram can be downloaded from here:
Want to see it in action? Heres a couple videos on it.
Software to change the wheel patterns is called Ardu-Stim and it is based on Josh Stewarts fork of the software. The software works on Windows, Mac and Linux computers and can be downloaded here: https://github.com/speeduino/Ardu-Stim/releases/tag/1.2.1
Please note: these engine simulators are built to order. Current stock quantity is of bare PCB boards I keep in stock to build customers orders. There is a 2-3 week turn around time on your order from time of purchase to time of shipping your order out. Any back ordered units (if I sell out of in stock bare PCB boards) are expected to have one (1) month turn around times on your order due to shipping.
Any questions please send me a email at sales@twistedbuilds.com
